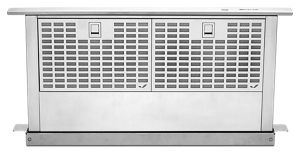

JXD7036YS
Telescoping Downdraft Ventilation, 36"
Key Features:
•
600 CFM High-Performance Blower
•
14-Inch (35.6cm) Rise
•
Reversible Motor Box
•
Four Fan Speed Settings
•
Dishwasher-Safe Premium Mesh Filters
Buy Now
Starting At
$2,299.99 MSRP
Telescoping Downdraft Ventilation, 36"
$2,299.99 MSRP
Top Features
600 CFM High-Performance Blower
A single centrifugal blower motor design allows the ventilation system to operate at up to 600 CFM to quickly remove smoke, steam and cooking odors.
14-Inch (35.6cm) Rise
Vent rises a full 14 inches (35.6cm), so it's far enough above the cooktop to capture steam from tall stockpots and other cookware.
Reversible Motor Box
Designed for flexibility, the reversible motor box can be positioned to face the front or back of cabinets to accommodate more installation options.
Four Fan Speed Settings
Four different settings on this luxury telescoping downdraft ventilation allow you to control the ventilation level for optimum performance and energy efficiency.
Dishwasher-Safe Premium Mesh Filters
These aluminum mesh filters, which effectively capture smoke, grease and cooking odors as they’re drawn through the hood, can be easily cleaned in the dishwasher.
6-Inch Round Exterior Venting
The 6-inch round exterior ventilation system allows ductwork to extend through an outer wall or the roof of a home.
Additional Features
3 1⁄4" x 10" Rectangular Exterior Venting
The 3 1⁄4" x 10" rectangular exterior ventilation system allows ductwork to extend through an outer wall or the roof of a home.
Hidden Slide Controls
This luxury telescoping downdraft ventilation achieves its sleek appearance with controls that are hidden from sight.
Automatic Shutoff When Retracted
This feature provides peace of mind by ensuring that the blower will always be turned off once the hood has been lowered into the countertop.
Integrated Styling
This luxury telescoping downdraft ventilation, which integrates into countertops and islands, allows you achieve a streamlined look.
Slim Profile
The telescoping downdraft ventilation’s slim profile takes up minimal space on a countertop or island.
OVERVIEW
This Jenn-Air® luxury telescoping downdraft ventilation offers minimal design and powerful performance right at the cooking surface. The sleek telescoping downdraft vent appears at the touch of a button, and elegantly retracts back into the countertop when not in use.
Specifications
Find product dimensions, installation information and more.
Product Summary
Width
91.44 cm, 36 in
Height
73.34 cm, 28-7/8 in
Depth
50.80 cm, 20 in
DETAILS
RESOURCES
Download useful, curated documents, guides, and assets for this product.
*In some cases, the install instructions and dimension guide may be included in the owner’s manual.
REPLACEMENT PARTS
Genuine replacement parts to repair your Jennair appliance.
THE JENNAIR VAULT
Find the assets you need - images, videos, documents and more - all in one place.
ACCESSORIES
Shop accessories that allow for proper installation, performance or preferred style.
W10387677
36" Range Downdraft Vent Top Trim, Black
W10446914
Range Hood Air Kit, 10" Round
W10446915
Range Hood Make-Up Air Kit
